OLBIA WALLWASHER

FLEXIBLE

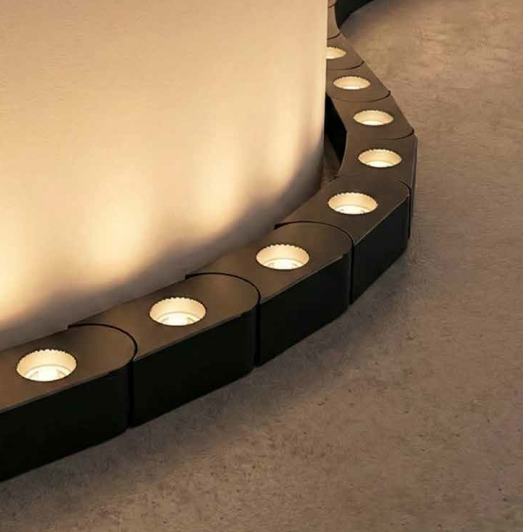

versatile application: suitably designed for curved
architectural applications in indoor and outdoor settings
ideal for flood lighting, wall grazing, wall washing,
and accent lighting
available in two lengths and modularly expandable:
luminaire lengths can be freely combined and extended up
to 4 meters
customizable lighting concepts: multiple lens options for
precise light distribution and a wide selection of light colors
robust aluminum housing
for demanding environments: IP 67 protection rating for
wet areas; IK06 impact resistance
RGBW version is continuously dimmable

DIMENSIONS: 666 x 39 x 29 mm

ANR	COLOUR TEMPERATURE	LUMEN/WATT	LUMEN/METER	CRI	EEC**	BEAM ANGLE	WATT/METER
609001022	2200 K	40 lm/W	1.450 lm/m	80	F	10×15°	36 W/m
609001522	2200 K	28 lm/W	1.000 lm/m	90	F	15×40°	36 W/m
609003022	2200 K	39 lm/W	1.400 lm/m	90	F	30°	36 W/m
609001027	2700 K	82 lm/W	2.950 lm/m	80	F	10×15°	36 W/m
609001527	2700 K	56 lm/W	2.000 lm/m	80	F	15×40°	36 W/m
609003027	2700 K	79 lm/W	2.850 lm/m	80	F	30°	36 W/m
609001030	3000 K	88 lm/W	3.150 lm/m	80	F	10×15°	36 W/m
609001530	3000 K	61 lm/W	2.200 lm/m	80	F	15×40°	36 W/m
609003030	3000 K	82 lm/W	2.950 lm/m	80	F	30°	36 W/m
609001040	4000 K	92 lm/W	3.300 lm/m	80	F	10×15°	36 W/m
609001540	4000 K	67 lm/W	2.400 lm/m	80	F	15×40°	36 W/m
609003040	4000 K	88 lm/W	3.150 lm/m	80	F	30°	36 W/m
609001036	RGBW 3000 K	42 lm/W	R: 300 G: 750 B: 100 W: 500	80	F	10×15°	36 W/m
609001536	RGBW 3000 K	29 lm/W	R: 200 G: 500 B: 65 W: 350	80	F	15×40°	36 W/m
609003036	RGBW 3000 K	39 lm/W	R: 300 G: 700 B: 100 W: 500	80	F	30°	36 W/m

ABMESSUNGEN: 1000 x 39 x 29 mm

ANR	COLOUR TEMPERATURE	LUMEN/WATT	LUMEN/METER	CRI	EEC**	BEAM ANGLE	WATT/METER
609011022	2200 K	40 lm/W	1.450 lm/m	80	F	10×15°	36 W/m
609011522	2200 K	28 lm/W	1.000 lm/m	90	F	15×40°	36 W/m
609013022	2200 K	39 lm/W	1.400 lm/m	90	F	30°	36 W/m
609011027	2700 K	82 lm/W	2.950 lm/m	80	F	10×15°	36 W/m
609011527	2700 K	56 lm/W	2.000 lm/m	80	F	15×40°	36 W/m
609013027	2700 K	79 lm/W	2.850 lm/m	80	F	30°	36 W/m
609011030	3000 K	88 lm/W	3.150 lm/m	80	F	10×15°	36 W/m
609011530	3000 K	61 lm/W	2.200 lm/m	80	F	15×40°	36 W/m
609013030	3000 K	82 lm/W	2.950 lm/m	80	F	30°	36 W/m
609011040	4000 K	92 lm/W	3.300 lm/m	80	F	10×15°	36 W/m
609011540	4000 K	67 lm/W	2.400 lm/m	80	F	15×40°	36 W/m
609013040	4000 K	88 lm/W	3.150 lm/m	80	F	30°	36 W/m
609011036	RGBW 3000 K	42 lm/W	R: 300 G: 750 B: 100 W: 500	80	F	10×15°	36 W/m
609011536	RGBW 3000 K	29 lm/W	R: 200 G: 500 B: 65 W: 350	80	F	15×40°	36 W/m
609013036	RGBW 3000 K	39 lm/W	R: 300 G: 700 B: 100 W: 500	80	F	30°	36 W/m

ANR	DESCRIPTION	DATASHEET
609001001	mounting bracket for flexible Olbia luminaires
609001002	swivel bracket, for flexible and rigid Olbia luminaires, 304 stainless steel
609001003	glare shield for flexible Olbia luminaires, 304 stainless steel
609001014	closing end cap, 2-pole for 1 channel (mono) Olbia luminaires
609001015	closing end cap, 5-pole for 4 channel (RGBW) Olbia luminaires
609001010	push-pull connector socket (female), 2-pole for 1 channel (mono) Olbia luminaires, 15 cm long
609001011	push-pull connector plug (male), 2-pole for 1 channel (mono) Olbia luminaires, 15 cm long
609001012	push-pull connector socket (female), 5-pole for 4 channel (RGBW) Olbia luminaires, 15 cm long
609001013	push-pull connector plug (male), 5-pole for 4 channel (RGBW) Olbia luminaires, 15 cm long
