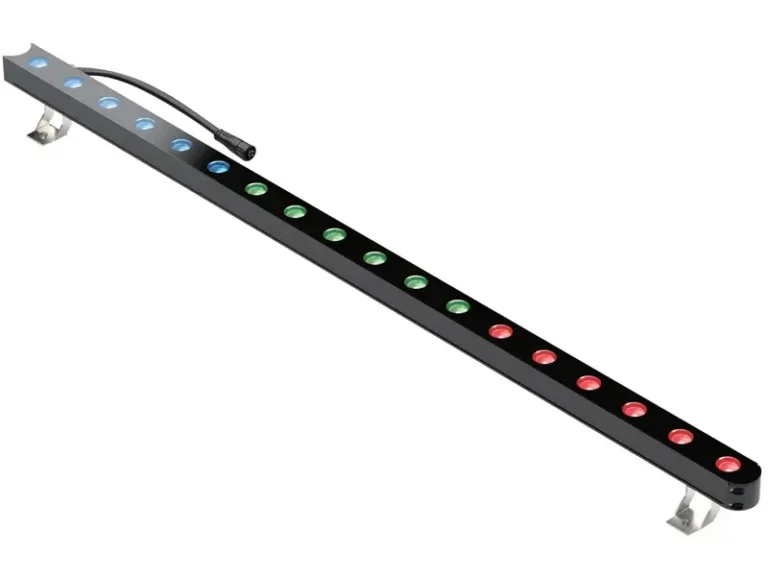

OLBIA WALLWASHER

RIGID

versatile application: designed for architectural applications in indoor and outdoor settings

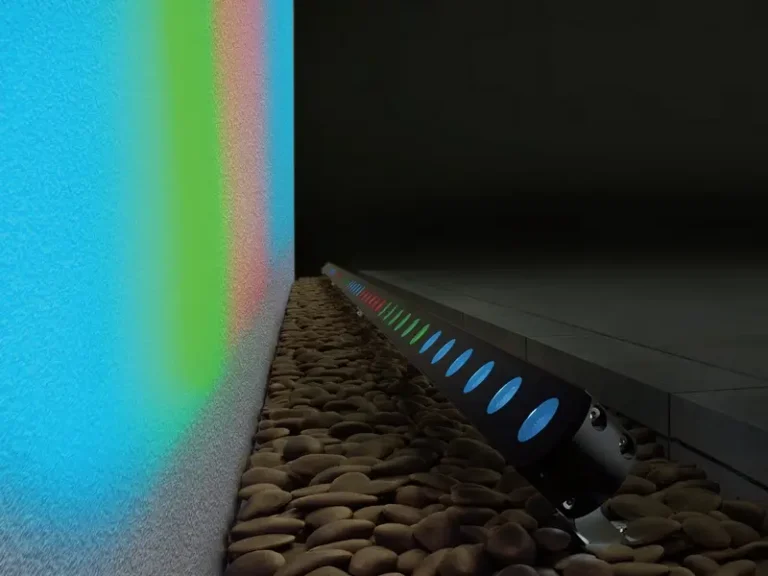

ideal for flood lighting, wall grazing, wall washing, and accent lighting
available in two lengths and modularly expandable: luminaire lengths can be freely combined and extended up to 4 meters
customizable lighting concepts: multiple lens options for precise light distribution and a wide selection of light colors
robust aluminum housing
for demanding environments: IP67 protection rating for wet areas; IK06 impact resistance
RGBW version is continuously dimmable
also available with anti-glare protection

DIMENSIONS: 666 x 39 x 29 mm – without anti-glare protection

ANr.	COLOUR TEMPERATURE	LUMEN/WATT	LUMEN/METER	CRI	EEC**	BEAM ANGLE	WATT/ METER
609101022	2200 K	40 lm/W	1.450 lm/m	90	F	10×15°	36 W/m
609101522	2200 K	28 lm/W	1.000 lm/m	90	F	15×40°	36 W/m
609103022	2200 K	39 lm/W	1.400 lm/m	90	F	30°	36 W/m
609101027	2700 K	82 lm/W	2.950 lm/m	80	F	10×15°	36 W/m
609101527	2700 K	56 lm/W	2.000 lm/m	90	F	15×40°	36 W/m
609103027	2700 K	79 lm/W	2.850 lm/m	90	F	30°	36 W/m
609101030	3000 K	88 lm/W	3.150 lm/m	80	F	10×15°	36 W/m
609101530	3000 K	61 lm/W	2.200 lm/m	80	F	15×40°	36 W/m
609103030	3000 K	82 lm/W	2.950 lm/m	80	F	30°	36 W/m
609101040	4000 K	92 lm/W	3.300 lm/m	90	F	10×15°	36 W/m
609101540	4000 K	67 lm/W	2.400 lm/m	90	F	15×40°	36 W/m
609103040	4000 K	88 lm/W	3.150 lm/m	90	F	30°	36 W/m
609101036	RGBW 3000 K	42 lm/W	R: 300 G: 750 B: 100 W: 500	80	F	10×15°	36 W/m
609101536	RGBW 3000 K	29 lm/W	R: 200 G: 500 B: 65 W: 350	80	F	15×40°	36 W/m
609103036	RGBW 3000 K	39 lm/W	R: 300 G: 700 B: 100 W: 500	80	F	30°	36 W/m

ABMESSUNGEN: 666 x 39 x 50 mm – with anti-glare protection

ANr.	COLOUR TEMPERATURE	LUMEN/WATT	LUMEN/METER	CRI	EEC**	BEAM ANGLE	WATT/ METER
609101022B	2200 K	40 lm/W	1.450 lm/m	90	F	10×15°	36 W/m
609101522B	2200 K	28 lm/W	1.000 lm/m	90	F	15×40°	36 W/m
609103022B	2200 K	39 lm/W	1.400 lm/m	90	F	30°	36 W/m
609101027B	2700 K	82 lm/W	2.950 lm/m	80	F	10×15°	36 W/m
609101527B	2700 K	56 lm/W	2.000 lm/m	90	F	15×40°	36 W/m
609103027B	2700 K	79 lm/W	2.850 lm/m	90	F	30°	36 W/m
609101030B	3000 K	88 lm/W	3.150 lm/m	80	F	10×15°	36 W/m
609101530B	3000 K	61 lm/W	2.200 lm/m	80	F	15×40°	36 W/m
609103030B	3000 K	82 lm/W	2.950 lm/m	80	F	30°	36 W/m
609101040B	4000 K	92 lm/W	3.300 lm/m	90	F	10×15°	36 W/m
609101540B	4000 K	67 lm/W	2.400 lm/m	90	F	15×40°	36 W/m
609103040B	4000 K	88 lm/W	3.150 lm/m	90	F	30°	36 W/m
609101036B	RGBW 3000 K	42 lm/W	R: 300 G: 750 B: 100 W: 500	80	F	10×15°	36 W/m
609101536B	RGBW 3000 K	29 lm/W	R: 200 G: 500 B: 65 W: 350	80	F	15×40°	36 W/m
609103036B	RGBW 3000 K	39 lm/W	R: 300 G: 700 B: 100 W: 500	80	F	30°	36 W/m

ABMESSUNGEN: 1000 x 39 x 29 mm – without anti-glare protection

ANr.	COLOUR TEMPERATURE	LUMEN/WATT	LUMEN/METER	CRI	EEC**	BEAM ANGLE	WATT/ METER
609111022	2200 K	40 lm/W	1.450 lm/m	90	F	10×15°	36 W/m
609111522	2200 K	28 lm/W	1.000 lm/m	90	F	15×40°	36 W/m
609113022	2200 K	39 lm/W	1.400 lm/m	90	F	30°	36 W/m
609111027	2700 K	82 lm/W	2.950 lm/m	80	F	10×15°	36 W/m
609111527	2700 K	56 lm/W	2.000 lm/m	90	F	15×40°	36 W/m
609113027	2700 K	79 lm/W	2.850 lm/m	90	F	30°	36 W/m
609111030	3000 K	88 lm/W	3.150 lm/m	80	F	10×15°	36 W/m
609111530	3000 K	61 lm/W	2.200 lm/m	80	F	15×40°	36 W/m
609113030	3000 K	82 lm/W	2.950 lm/m	80	F	30°	36 W/m
609111040	4000 K	92 lm/W	3.300 lm/m	90	F	10×15°	36 W/m
609111540	4000 K	67 lm/W	2.400 lm/m	90	F	15×40°	36 W/m
609113040	4000 K	88 lm/W	3.150 lm/m	90	F	30°	36 W/m
609111036	RGBW 3000 K	42 lm/W	R: 300 G: 750 B: 100 W: 500	80	F	10×15°	36 W/m
609111536	RGBW 3000 K	29 lm/W	R: 200 G: 500 B: 65 W: 350	80	F	15×40°	36 W/m
609113036	RGBW 3000 K	39 lm/W	R: 300 G: 700 B: 100 W: 500	80	F	30°	36 W/m

DIMENSIONS: 1000 x 39 x 50 mm – with anti-glare protection

ANr.	COLOUR TEMPERATURE	LUMEN/WATT	LUMEN/METER	CRI	EEC**	BEAM ANGLE	WATT/ METER
609111022B	2200 K	40 lm/W	1.450 lm/m	90	F	10×15°	36 W/m
609111522B	2200 K	28 lm/W	1.000 lm/m	90	F	15×40°	36 W/m
609113022B	2200 K	39 lm/W	1.400 lm/m	90	F	30°	36 W/m
609111027B	2700 K	82 lm/W	2.950 lm/m	80	F	10×15°	36 W/m
609111527B	2700 K	56 lm/W	2.000 lm/m	90	F	15×40°	36 W/m
609113027B	2700 K	79 lm/W	2.850 lm/m	90	F	30°	36 W/m
609111030B	3000 K	88 lm/W	3.150 lm/m	80	F	10×15°	36 W/m
609111530B	3000 K	61 lm/W	2.200 lm/m	80	F	15×40°	36 W/m
609113030B	3000 K	82 lm/W	2.950 lm/m	80	F	30°	36 W/m
609111040B	4000 K	92 lm/W	3.300 lm/m	90	F	10×15°	36 W/m
609111540B	4000 K	67 lm/W	2.400 lm/m	90	F	15×40°	36 W/m
609113040B	4000 K	88 lm/W	3.150 lm/m	90	F	30°	36 W/m
609111036B	RGBW 3000 K	42 lm/W	R: 300 G: 750 B: 100 W: 500	80	F	10×15°	36 W/m
609111536B	RGBW 3000 K	29 lm/W	R: 200 G: 500 B: 65 W: 350	80	F	15×40°	36 W/m
609113036B	RGBW 3000 K	39 lm/W	R: 300 G: 700 B: 100 W: 500	80	F	30°	36 W/m

ANr.	DESCRIPTION	DATASHEET
609001002	Swivel mounting bracket for flexible and rigid Olbia luminaires, V2A stainless steel
609001004	Mounting bracket, V2A stainless steel
609001014	End cap, 2-pin, for 1-channel (Mono) Olbia luminaires
609001015	End cap, 5-pin, for 4-channel (RGBW) Olbia luminaires
609001010	Push-pull connector, 2-pin, for 1-channel (Mono) Olbia luminaires, 15 cm length
609001011	Push-pull socket, 2-pin, for 1-channel (Mono) Olbia luminaires, 15 cm length
609001012	Push-pull connector, 5-pin, for 4-channel (RGBW) Olbia luminaires, 15 cm length
609001013	Push-pull socket, 5-pin, for 4-channel (RGBW) Olbia luminaires, 15 cm length
