AQUALUC X SIGNAL

SIGNALLING fOR ITEM-ProfileS

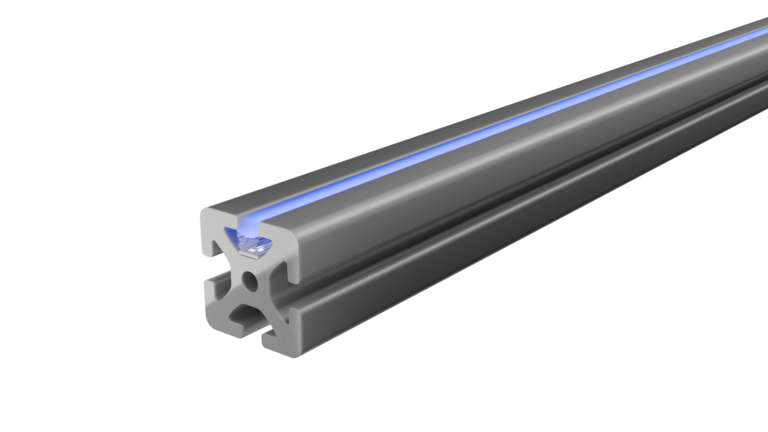

  • Designed for machines with item aluminium profiles, enabling visual signalling and machine status indication.
  • Ready for installation with no additional mounting required. Tool-free installation without extra wiring.
  • Provides a clear visual display of process progress and machine states directly in the operator’s field of view, using red, green, blue and mixed colours.
  • Enables safe integration with existing machine control systems via M8 connectors.
  • Polyurethane instead of silicone. The rugged encapsulation ensures outstanding durability and long-term reliability in industrial environments.
  • Minimum bending radius: 150 mm
FitPart numberDescriptionInput voltageLumen/
Watt
Lumen/
Meter
DimensionsBeam angleLED/
Meter
Watt/
Meter
Data sheet
ITEM profile 860240501AQUALUC X SIGNAL24 VDC41 lm/W490 lm/m520×8,7×12,3 mm (l×w×h)120°66/m12 W/m
ITEM profile 860241001AQUALUC X SIGNAL24 VDC41 lm/W490 lm/m1020×8,7×12,3 mm (l×w×h)120°66/m12 W/m
ITEM profile 860241501AQUALUC X SIGNAL24 VDC41 lm/W490 lm/m1520×8,7×12,3 mm (l×w×h)120°66/m12 W/m
ITEM profile 860242001AQUALUC X SIGNAL24 VDC41 lm/W490 lm/m2020×8,7×12,3 mm (l×w×h)120°66/m12 W/m
