LEDLIGHT FLEX 12 8P
COLOR RED-AMBER

  • LED strips for single-color light lines
  • ideal for bright, colored lighting (lighter compared to RGB)
  • connection with tool-free plug connector
  • operating life L70 > 30,000 h at Tc < 80 °C
  • current regulation by IC for constant brightness over the entire light
  • line with integrated overheating protection
  • with reverse polarity protection diode
  • with TVS surge protection diode
  • with high-quality 3M double adhesive tape


  • Input voltage: 24 VDC
  • Channels: 1
  • Min. bend radius: 20 mm


System: CV Colour type: red Colour type: amber LED/meter: 78/m Pitch: 12 Roll length: 504 cm Max. feed: 504 cm Cut length: 9 cm Connection type: soldering Beam angle: 120° Dimmable: ja Lifespan L70: >30000h Max. housing temperature: 80° Degree of protection: IP00

Download Catalogue | Manuals
ANrColourColour
temperature		Lumen/
watt		Lumen/
meter		Number
LED		Watt/
meter		Datasheets
CUT à 9 cm
On request50012011 red625nm40 lm/W710 lm/m717,3 W/m
On request50012022 amber593nm41 lm/W690 lm/m717,3 W/m
REEL à 504 cm
Stock item (Nuremberg)50412011 red625nm40 lm/W710 lm/m39217,3 W/m
Stock item (Nuremberg)50412022 amber593nm41 lm/W690 lm/m39217,3 W/m
Stock item (Nuremberg) Stock item (Nuremberg) On request On request no longer available no longer available (Delivery status subject to change)
Please note: Insufficient cooling will damage the LEDs
ANrDescriptionInput
voltage		ApplicationDegree of
protection		Housing/
colour		Datasheets
no longer available51991012 cable with AR connector 100 cm 2 pole - soldered to LEDlight flex   white
Stock item (Nuremberg)50070202 LED strip to power connector, 8 mm, 4-pole, 50 cm cable with free wire ends, for tool-free connection of the strip, 1 piece3-48 VDCIndoorIP20
no longer available50990004 2-pole cable 1m, white, for indoor use, PVC, 2x 0.34mm?
no longer available50991004 2-pole cable 1m, black, for indoor use, PVC, 2x 0.34mm²
no longer available50990721 cable 2 pole, with tin plated free wire ends - soldered to LEDlight flex
On request50990007 one-sided skinning and tinning/soldering to LEDlight flex (additionally cable), 2-pole, boundless wire ends
no longer available50990722 cable 2 pole, with tin plated free wire ends - soldered to LEDlight flex
no longer available50990723 cable 2 pole, with tin plated free wire ends - soldered to LEDlight flex
On request50990221 two-sided skinning and tinning/soldering to LEDlight flex (additionally cable), 2-pole, boundless wire ends
50070202: Detailled processing notes see datasheet

Maximum LED Strips length in relation to supply line length »

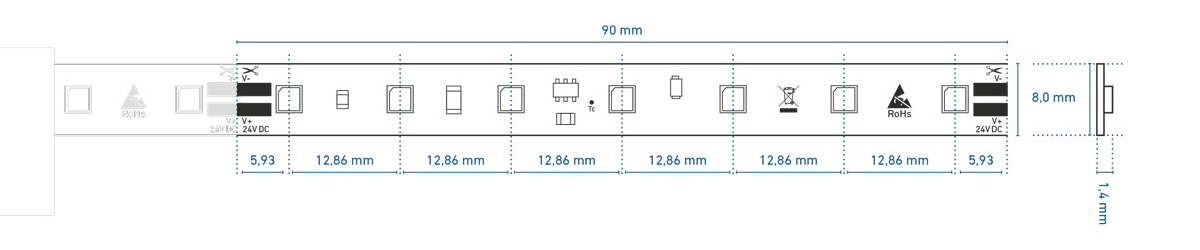

Technical Drawing

Profile use with visible light points

BARdolino Muro
BARdolino Walllight 2.0
Scala Uplight
Scala Downlight
GARgano
Pino HP
BARdolino R mini
GARliano flex
BARdolino Duo
BARdolino Midi flach
BARdolino MIDI T
BARdolino MIDI Angolo

Profile use with homogeneous lighting

BARdolino flat *
BARdolino high
BARdolino stainless steel 316L
BARdolino T
BARdolino H
BARdolino Angolo *
GARliano *
CATania 3030
CATania 3030 T
CATania 8090
CATania 3060
CATania 6075
CATania Angolo 3030
CATania 6075 T
CATania 4040
CATania 4050
CATania 30 TB
CATania 30 UP
CATania 3060 DUO
CATania 43125 DUO

* = a uniform light line is only possible in combination with a high diffusor
** = a uniform light line is only possible in combination with a half-round diffusor
*** = a uniform light line is only possible in combination with a square diffusor
