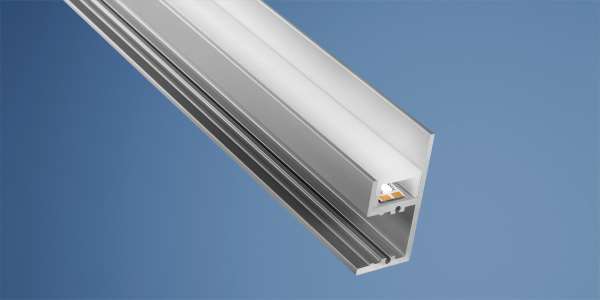

BARDOLINO MURO

  • high quality aluminium wall profile, anodised
  • ideally suited for indirect lighting without an existing cove on site
  • light emission optionally upwards or downwards
  • with integrated cable duct
  • easy installation over long distances with the help of the mounting profile (on uneven areas it is recommended to install the holders every 5 cm)
  • RAL powder coating on request





ANr*DescriptionDimensionsHousing/
colour
Datasheets
Stock item (Nuremberg)62399531 aluminium anodized1000×18,4×37,3 mm (l×w×h)natural tone
Stock item (Nuremberg)62399532 aluminium anodized2010×18,4×37,3 mm (l×w×h)natural tone
Stock item (Nuremberg)62399533 aluminium anodized3020×18,4×37,3 mm (l×w×h)natural tone
Stock item (Nuremberg)62399535 aluminium anodized5030×18,4×37,3 mm (l×w×h)natural tone
Stock item (Nuremberg)62399531_9010 aluminium powder coated1000×18,4×37,3 mm (l×w×h)white RAL9010
Stock item (Nuremberg)62399532_9010 aluminium powder coated2010×18,4×37,3 mm (l×w×h)white RAL9010
Stock item (Nuremberg)62399533_9010 aluminium powder coated3020×18,4×37,3 mm (l×w×h)white RAL9010
Stock item (Nuremberg)62399535_9010 aluminium powder coated5030×18,4×37,3 mm (l×w×h)white RAL9010
Stock item (Nuremberg)62399531_9005 aluminium powder coated1000×18,4×37,3 mm (l×w×h)black RAL9005
Stock item (Nuremberg)62399532_9005 aluminium powder coated2010×18,4×37,3 mm (l×w×h)black RAL9005
Stock item (Nuremberg)62399533_9005 aluminium powder coated3020×18,4×37,3 mm (l×w×h)black RAL9005
Stock item (Nuremberg)62399535_9005 aluminium powder coated5030×18,4×37,3 mm (l×w×h)black RAL9005
Stock item (Nuremberg) Stock item (Nuremberg) On request On request no longer available no longer available (Delivery status subject to change)
62399531, 62399532, 62399533, 62399535: Please consider linear extension with temperature variations
ANrDescriptionDimensionsHousing/
colour
Datasheets
Stock item (Nuremberg)62399301 Diffuser opal, for a homogenous and glare-free light distribution1000×14,8×8 mm (l×w×h)transparent opal white
Stock item (Nuremberg)62399321 mounting profile, aluminium, anodised, also functions as cover for feed-in etc.1000×14,8×8 mm (l×w×h)Aluminium
Stock item (Nuremberg)62399302 Diffuser opal, for a homogenous and glare-free light distribution2010×14,8×8 mm (l×w×h)transparent opal white
Stock item (Nuremberg)62399322 mounting profile, aluminium, anodised, also functions as cover for feed-in etc.2010×14,8×8 mm (l×w×h)Aluminium
Stock item (Nuremberg)62399303 Diffuser opal, for a homogenous and glare-free light distribution3020×14,8×8 mm (l×w×h)transparent opal white
Stock item (Nuremberg)62399323 mounting profile, aluminium, anodised, also functions as cover for feed-in etc.3020×14,8×8 mm (l×w×h)Aluminium
Stock item (Nuremberg)62399305 Diffuser opal, for a homogenous and glare-free light distribution5030×14,8×8 mm (l×w×h)transparent opal white
Stock item (Nuremberg)62399325 mounting profile, aluminium, anodised, also functions as cover for feed-in etc.5030×14,8×8 mm (l×w×h)Aluminium
Stock item (Nuremberg)62399371 Diffuser satined, for a diffused light distribution and concealment of the technology1000×14,8×8 mm (l×w×h)transparent satined
Stock item (Nuremberg)62399372 Diffuser satined, for a diffused light distribution and concealment of the technology2010×14,8×8 mm (l×w×h)transparent satined
Stock item (Nuremberg)62399373 Diffuser satined, for a diffused light distribution and concealment of the technology3020×14,8×8 mm (l×w×h)transparent satined
Stock item (Nuremberg)62399375 Diffuser satined, for a diffused light distribution and concealment of the technology5030×14,8×8 mm (l×w×h)transparent satined
Stock item (Nuremberg)62399401 Diffuser clear, for max. light yield and protection of the LED strip1000×14,8×8 mm (l×w×h)transparent clear
Stock item (Nuremberg)62399402 Diffuser clear, for max. light yield and protection of the LED strip2010×14,8×8 mm (l×w×h)transparent clear
Stock item (Nuremberg)62399403 Diffuser clear, for max. light yield and protection of the LED strip3020×14,8×8 mm (l×w×h)transparent clear
Stock item (Nuremberg)62399405 Diffuser clear, for max. light yield and protection of the LED strip5030×14,8×8 mm (l×w×h)transparent clear
Stock item (Nuremberg)62379101 Diffuser satined, PMMA, 10° lens for a directed light focus1000×14,8×9 mm (l×w×h)transparent satined
Stock item (Nuremberg)62379102 Diffuser satined, PMMA, 10° lens for a directed light focus2010×14,8×9 mm (l×w×h)transparent satined
Stock item (Nuremberg)62379103 Diffuser satined, PMMA, 10° lens for a directed light focus3020×14,8×9 mm (l×w×h)transparent satined
Stock item (Nuremberg)62379105 Diffuser satined, PMMA, 10° lens for a directed light focus5030×14,8×9 mm (l×w×h)transparent satined
Stock item (Nuremberg)62379301 Diffuser satined, 30° lens for a directed light focus1000×14,8×8 mm (l×w×h)transparent satined
Stock item (Nuremberg)62379302 Diffuser satined, 30° lens for a directed light focus2010×14,8×8 mm (l×w×h)transparent satined
Stock item (Nuremberg)62379303 Diffuser satined, 30° lens for a directed light focus3020×14,8×8 mm (l×w×h)transparent satined
Stock item (Nuremberg)62379305 Diffuser satined, 30° lens for a directed light focus5030×14,8×8 mm (l×w×h)transparent satined
Stock item (Nuremberg)62379601 Diffuser satined, 60° lens for a directed light focus1000×14,8×8 mm (l×w×h)transparent satined
Stock item (Nuremberg)62379602 Diffuser satined, 60° lens for a directed light focus2010×14,8×8 mm (l×w×h)transparent satined
Stock item (Nuremberg)62379603 Diffuser satined, 60° lens for a directed light focus3020×14,8×8 mm (l×w×h)transparent satined
Stock item (Nuremberg)62379605 Diffuser satined, 60° lens for a directed light focus5030×14,8×8 mm (l×w×h)transparent satined
62399301, 62399321, 62399302, 62399322, 62399303, 62399323, 62399305, 62399325, 62399371, 62399372, 62399373, 62399375, 62399401, 62399402, 62399403, 62399405: Please consider linear extension with temperature variations
ANrDescriptionMounting
type
Housing/
colour
Datasheets
Stock item (Nuremberg)62399536_9005 aluminium powder coatedschraubbarblack RAL9005
Stock item (Nuremberg)62399536_9010 aluminium powder coatedschraubbarwhite RAL9010
Stock item (Nuremberg)62399536 2x BARdolino end cap aluminium, incl. 4 screwsschraubbarnatural tone
Stock item (Nuremberg)62399934 2x brackets 5cm, incl. screws and dowels, suitable for profiles of the BARdolino familyschraubbarAluminium
