LEDLIGHT FLEX 12 8P
HIGH EFFICIENCY PRO 2.0 available from 2022/08

excellent efficiency, up to 161 lm/w at 4000 K
only one bin per colour according to 3 Step MacAdam
available in 4 white tones: 2700 K, 3000 K, 4000 K and 5700 K
delivers luminous flux up to 4,153 lm/m
ideal for applications with high daily operating time
with reverse polarity diode and TVS surge protection diode
current regulation by IC for constant brightness over the entire light line with integrated overheating protection
with high-quality 3M double adhesive tape
estimated lifetime L90/B10 at Tc < 80 °C: > 60,000 h

Input voltage: 24 VDC
Min. bend radius: 20 mm

Catalogue | EulumDat | Manuals

Products

ANr	Colour	Colour temperature	Lumen/ watt	Lumen/ meter	CRI	EEC**	Number LED	Watt/ meter	Max. feed	Channels
CUT à 9 cm
50016128	warm white \| 927	2700 K	146 lm/W	3802 lm/m	96	E	7	25,9 W/m	243 cm	1
50016133	white \| 930	3000 K	154 lm/W	3994 lm/m	96	E	7	25,9 W/m	243 cm	1
50016134	cold white \| 940	4000 K	161 lm/W	4153 lm/m	96	E	7	25,9 W/m	243 cm	1
50016115	daylight \| 957	5700 K	156 lm/W	4047 lm/m	96	E	7	25,9 W/m	243 cm	1
REEL 1 à 216 cm
50416128	warm white \| 927	2700 K	146 lm/W	3802 lm/m	96	E	168	25,9 W/m
50416133	white \| 930	3000 K	154 lm/W	3994 lm/m	96	E	168	25,9 W/m
50416134	cold white \| 940	4000 K	161 lm/W	4153 lm/m	96	E	168	25,9 W/m
50416115	daylight \| 957	5700 K	156 lm/W	4047 lm/m	96	E	168	25,9 W/m

Stock item (Nuremberg)

On request

no longer available (Delivery status subject to change)

** The EEC specification refers in each case to the installed light source(s)

Maximum LED Strips length in relation to supply line length »

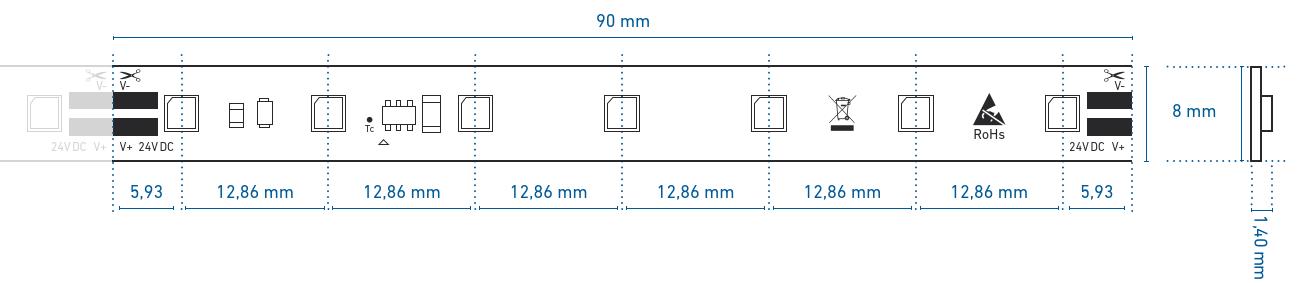

Technical Drawing

Profile use with visible light points

BARdolino Muro

BARdolino Walllight 2.0

Scala Uplight

Scala Downlight

Pino HP

BARdolino Duo

BARdolino Midi flach

BARdolino MIDI T

BARdolino MIDI Angolo

Profile use with homogeneous lighting

BARdolino flat *

BARdolino high

BARdolino T

BARdolino H

BARdolino Angolo *

GARliano *

CATania 3030

CATania 3030 T

CATania 8090

CATania 3060

CATania 6075

CATania Angolo 3030

CATania 6075 T

CATania 4040

CATania 4050

CATania 30 TB

CATania 30 UP

CATania 3060 DUO

CATania 43125 DUO

* = a uniform light line is only possible in combination with a high diffusor
** = a uniform light line is only possible in combination with a half-round diffusor
*** = a uniform light line is only possible in combination with a square diffusor
