LEDLIGHT FLEX 08 8
HIGH EFFICIENCY 2.0

  • excellent efficiency, up to 170 lm/w at 4000 K
  • only one bin per colour according to 3 Step MacAdam
  • available in 4 white tones: 2700 K, 3000 K, 4000 K and 5700 K
  • delivers luminous flux up to 1,090 lm/m
  • ideal for applications with high daily operating time
  • with reverse polarity diode and TVS surge protection diode
  • current regulation by IC for constant brightness over the entire light line with integrated overheating protection
  • with high-quality 3M double adhesive tape
  • estimated lifetime L90/B10 at Tc < 80 °C: > 60,000 h


  • Input voltage: 24 VDC
  • Min. bend radius: 20 mm


System: CV Colour type: white LED/meter: 117/m Pitch: 8 Cut length: 6 cm Connection type: soldering Beam angle: 120° Dimmable: ja Colour consistency: 3 Binning: 1 Max. housing temperature: 80° Degree of protection: IP00

Download Catalogue | EulumDat | Manuals
ANrColourColour
temperature		Lumen/
watt		Lumen/
meter		CRIEEC**Number
LED		Watt/
meter		Max.
feed		ChannelsDatasheets
CUT à 6 cm
On request50015628 warm white | 9272700 K156 lm/W997 lm/m96D76,4 W/m960 cm1
On request50015633 white | 9303000 K164 lm/W1048 lm/m96D76,4 W/m960 cm1
On request50015634 cold white | 9404000 K170 lm/W1090 lm/m96D76,4 W/m960 cm1
On request50015615 daylight | 9575700 K165 lm/W1055 lm/m96D76,4 W/m960 cm1
REEL à 504 cm
Stock item (Nuremberg)50415628 warm white | 9272700 K156 lm/W997 lm/m96D5886,4 W/m
Stock item (Nuremberg)50415633 white | 9303000 K164 lm/W1048 lm/m96D5886,4 W/m
Stock item (Nuremberg)50415634 cold white | 9404000 K170 lm/W1090 lm/m96D5886,4 W/m
Stock item (Nuremberg)50415615 daylight | 9575700 K165 lm/W1055 lm/m96D5886,4 W/m
Stock item (Nuremberg) Stock item (Nuremberg) On request On request no longer available no longer available (Delivery status subject to change)

** The EEC specification refers in each case to the installed light source(s)


Maximum LED Strips length in relation to supply line length »

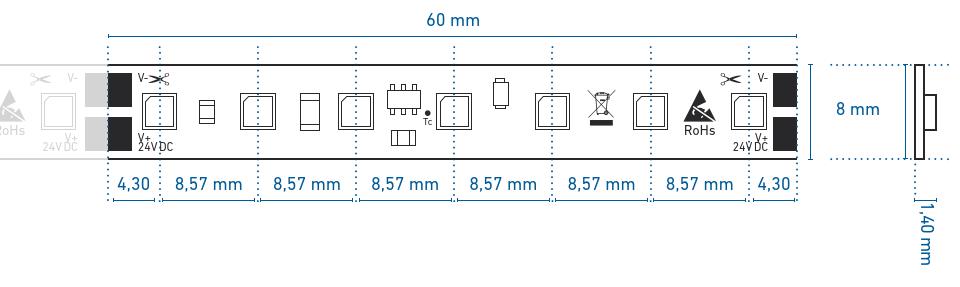

Technical Drawing

Profile use with visible light points

BARdolino Muro
BARdolino Walllight 2.0
Scala Uplight
GARgano
Pino HP
BARdolino R mini
GARliano flex
BARdolino Duo
BARdolino Midi flach
BARdolino MIDI T

Profile use with homogeneous lighting

BARdolino flat
BARdolino high
BARdolino stainless steel 316L
BARdolino T
BARdolino H
BARdolino Angolo *
Scala Downlight
GARliano *
CATania 3030
CATania 3030 T
CATania 8090
CATania 3060
CATania 6075
CATania Angolo 3030
CATania 6075 T
CATania 4040
CATania 4050
CATania 30 TB
CATania 30 UP
CATania 3060 DUO
CATania 43125 DUO
BARdolino MIDI Angolo ***

* = a uniform light line is only possible in combination with a high diffusor
** = a uniform light line is only possible in combination with a half-round diffusor
*** = a uniform light line is only possible in combination with a square diffusor
