LEDLIGHT FLEX 16 8P
STANDARD 500 2.0

LED strips for common applications
ideal for use in living areas
connection with tool-free plug connector
good color rendering: CRI Ra typ. 90
long operating life L70 > 60,000 h at Tc < 80 °C
current regulation by IC for constant brightness over the entire light
line with integrated overheating protection
with TVS surge protection diode
with high-quality 3M double adhesive tape

Input voltage: 24 VDC
Channels: 1
Min. bend radius: 20 mm

Catalogue | EulumDat | Manuals

Products
Accessories

ANr	Colour	Colour temperature	Lumen/ watt	Lumen/ meter	CRI	Number LED	Watt/ meter
CUT à 10 cm
50013128	warm white \| 927	2700 K	100 lm/W	480 lm/m	90	6	4,8 W/m
50013133	white \| 930	3000 K	110 lm/W	530 lm/m	90	6	4,8 W/m
50013134	cold white \| 940	4000 K	117 lm/W	560 lm/m	90	6	4,8 W/m
REEL 2 à 2000 cm
50413228	warm white \| 927	2700 K	100 lm/W	480 lm/m	90	1200	4,8 W/m
50413233	white \| 930	3000 K	110 lm/W	530 lm/m	90	1200	4,8 W/m
50413234	cold white \| 940	4000 K	117 lm/W	560 lm/m	90	1200	4,8 W/m
REEL 1 à 500 cm
50413128	warm white \| 927	2700 K	100 lm/W	480 lm/m	90	300	4,8 W/m
50413133	white \| 930	3000 K	110 lm/W	530 lm/m	90	300	4,8 W/m
50413134	cold white \| 940	4000 K	117 lm/W	560 lm/m	90	300	4,8 W/m

Stock item (Nuremberg)

On request

no longer available (Delivery status subject to change)

ANr	Description	Input voltage	Application	Degree of protection	Housing/ colour
51991012	cable with AR connector 100 cm 2 pole - soldered to LEDlight flex				white
50070203	LED strip to strip connector, 8 mm, for tool-free connection of 2 and 4-pole strips, 1 piece	3-48 VDC	Indoor	IP20
50070204	LED strip to strip connector, 8 mm, 40 mm cable, for tool-free connection of 2 and 4-pole strips, 1 piece	3-48 VDC	Indoor	IP20
50070201	LED strip to power connector, 8 mm, 2-pole, 50 cm cable with free wire ends, for tool-free connection of the strip, 1 piece	3-48 VDC	Indoor	IP20
50070202	LED strip to power connector, 8 mm, 4-pole, 50 cm cable with free wire ends, for tool-free connection of the strip, 1 piece	3-48 VDC	Indoor	IP20
50990004	2-pole cable 1m, white, for indoor use, PVC, 2x 0.34mm?
50991004	2-pole cable 1m, black, for indoor use, PVC, 2x 0.34mm²
50990721	cable 2 pole, with tin plated free wire ends - soldered to LEDlight flex
50990007	one-sided skinning and tinning/soldering to LEDlight flex (additionally cable), 2-pole, boundless wire ends
50990722	cable 2 pole, with tin plated free wire ends - soldered to LEDlight flex
50990723	cable 2 pole, with tin plated free wire ends - soldered to LEDlight flex
50990221	two-sided skinning and tinning/soldering to LEDlight flex (additionally cable), 2-pole, boundless wire ends

50070203, 50070204, 50070201, 50070202: Detailled processing notes see datasheet

50070202: Processing notes for LEDlight flex

Maximum LED Strips length in relation to supply line length »

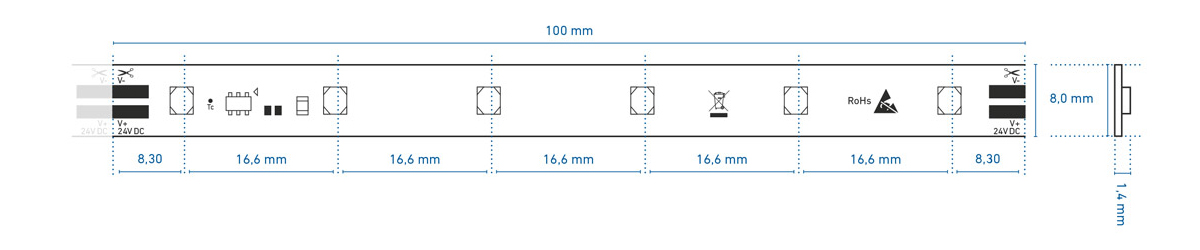

Technical Drawing

Profile use with visible light points

BARdolino Muro

BARdolino Walllight 2.0

Scala Uplight

Scala Downlight

GARgano

Pino HP

GARliano

BARdolino R mini

GARliano flex

BARdolino Duo

BARdolino Midi flach

BARdolino MIDI T

BARdolino MIDI Angolo

Profile use with homogeneous lighting

BARdolino flat *

BARdolino high

BARdolino stainless steel 316L

BARdolino T

BARdolino H

BARdolino Angolo

CATania 3030

CATania 3030 T

CATania 8090

CATania 3060

CATania 6075

CATania Angolo 3030

CATania 6075 T

CATania 4040

CATania 4050

CATania 30 TB

CATania 30 UP

CATania 3060 DUO

CATania 43125 DUO

* = a uniform light line is only possible in combination with a high diffusor
** = a uniform light line is only possible in combination with a half-round diffusor
*** = a uniform light line is only possible in combination with a square diffusor
