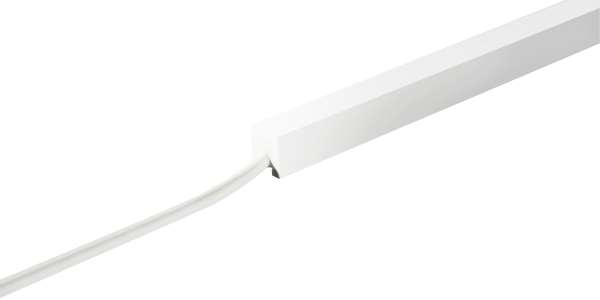

AQUALUC C:URVE
RGB

  • fully encapsulated flexible LED light line with thermal conducive polyurethane-ceramic compound and IP 67 protection
  • resistant to water, UV radiation, abrasion and chemicals
  • rich colour tones for impressive accent lighting
  • small bending radius of only 15 cm (only one axis)
  • current limiter and high amount of copper in FPC enable a long lifetime
  • estimated lifetime L70 at Ta < 35 °C: > 30.000 h
  • AQUALUC material test overview


  • Available in individual lengths and dual-sided feed-in on request
  • Input voltage: 24 VDC
  • Colour: RGB
  • Channels: 3
  • Min. bend radius: 150


System: CV Colour type: RGB LED/meter: 66/m Pitch: 15 Connection type: Connector Beam angle: 120° Dimmable: ja Application: Outdoor Lifespan L70: >30000h Max. housing temperature: 74° Degree of protection: IP67

Download Catalogue | Manuals
ANr*Colour
temperature		Lumen/
watt		Lumen/
meter		DimensionsWatt/
meter		Datasheets
On requestAQUA-3005-0RGB RGB15 lm/W242 lm/m10×18,5 mm (w×h)16 W/m
Stock item (Nuremberg) Stock item (Nuremberg) On request On request no longer available no longer available (Delivery status subject to change)
Please consider linear extension with temperature variations.

* order numbers

We manufacture the LED light lines of the AQUALUC series individually according to your requirements. In the following table you have the possibility to complete the order number of your desired luminaire.

Example for a complete order number: AQUA-5001-0028-2000-21-001-002

AQUA-XXXX-XXXX -XXXX -XX -XXX -XXX
see Table (Wish length in mm) Cable feed Cable in-feed Cable out-feed
21 - one-sided
22 - double-sided 		001 - 1 m-cable
002 - 2 m-cable
003 - 3 m-cable
004 - 4 m-cable
005 - 5 m-cable
006 - 6 m-cable
101 - 0.35m cable with M8 connector 		000 - no cable out-feed
001 - 1 m-cable
002 - 2 m-cable
003 - 3 m-cable
004 - 4 m-cable
005 - 5 m-cable
006 - 6 m-cable
102 - 0.35m cable with M8 socket
ANrDescriptionDatasheets
Stock item (Nuremberg)40500033 AQUALUC C:URVE (10 x 18,5 mm) aluminium mounting profile, anodised
Stock item (Nuremberg)40500034 AQUALUC C:URVE (10 x 18,5 mm) aluminium mounting profile, anodised
Stock item (Nuremberg)40500035 AQUALUC C:URVE (10 x 18,5 mm) aluminium bracket set, 10 pieces 5 cm, 10 screws, 10 dowels
Stock item (Nuremberg)40500036 AQUALUC C:URVE (10 x 18,5 mm) bracket set, 10 pieces stainless steel 316L, 10 screws, 10 dowels
Stock item (Nuremberg)40500071 AQUALUC C:URVE (10 x 18.5 mm) mounting profile, PC plastic, UV resistant
Stock item (Nuremberg)40500072 AQUALUC C:URVE (10 x 18.5 mm) mounting profile, PC plastic, UV resistant
40500033, 40500034, 40500035, 40500036: Please consider linear extension with temperature variations.
